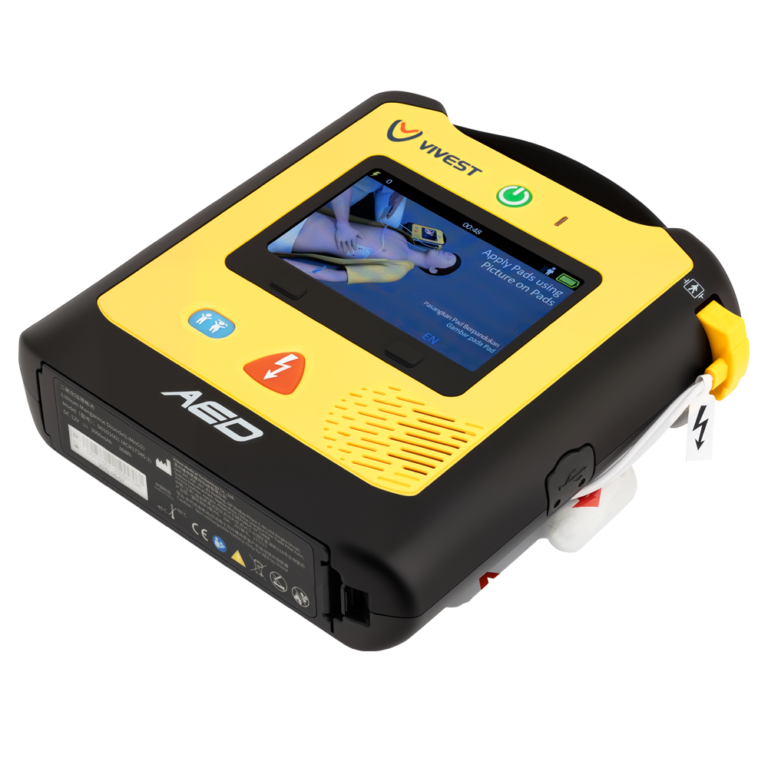

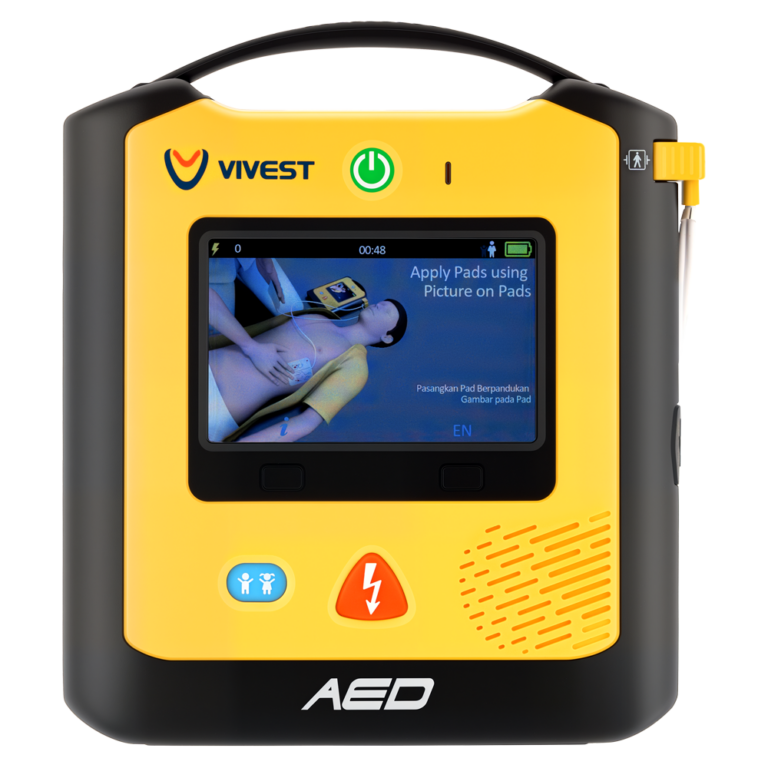

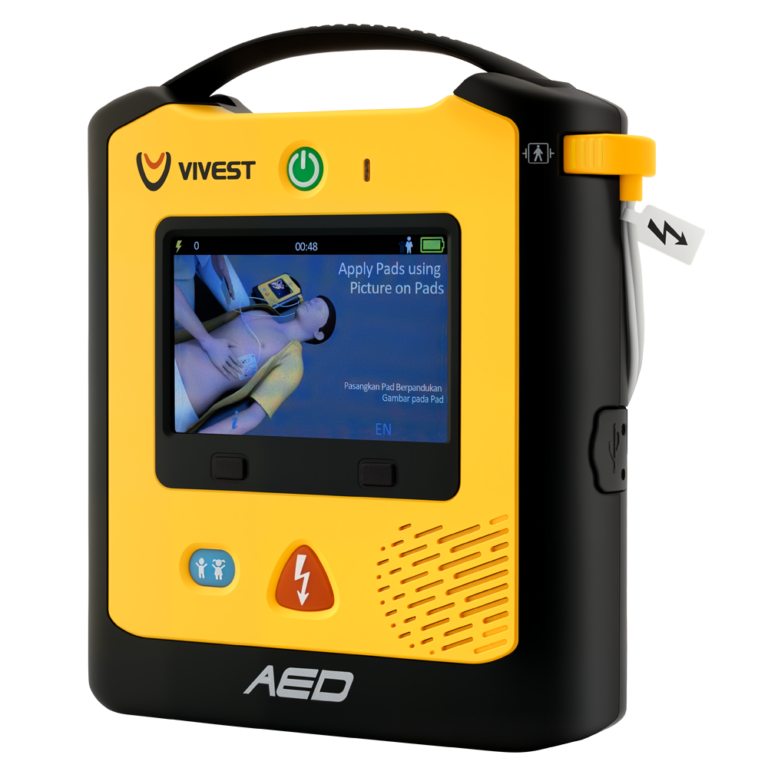

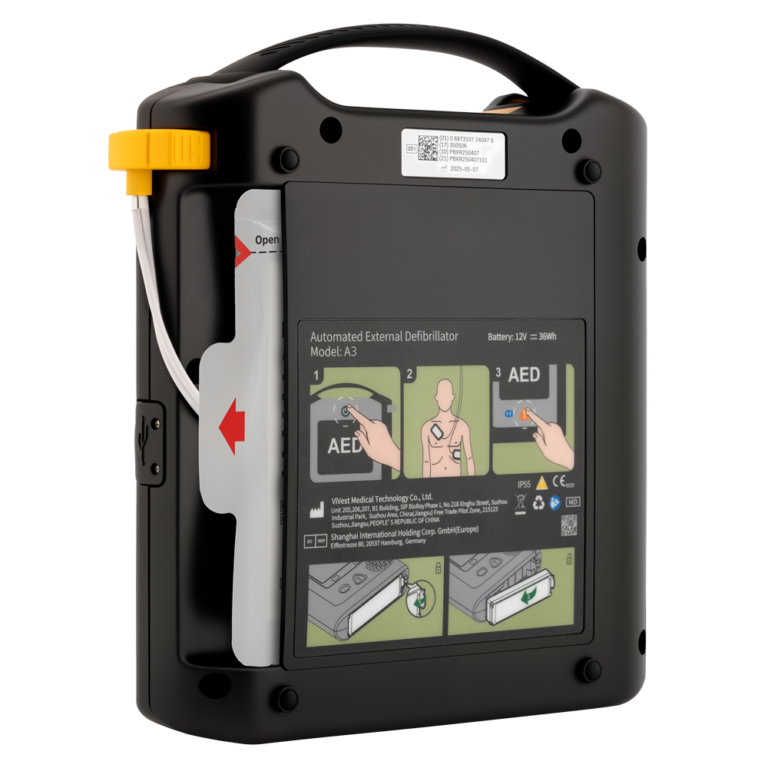

A3 AED
A3 AED

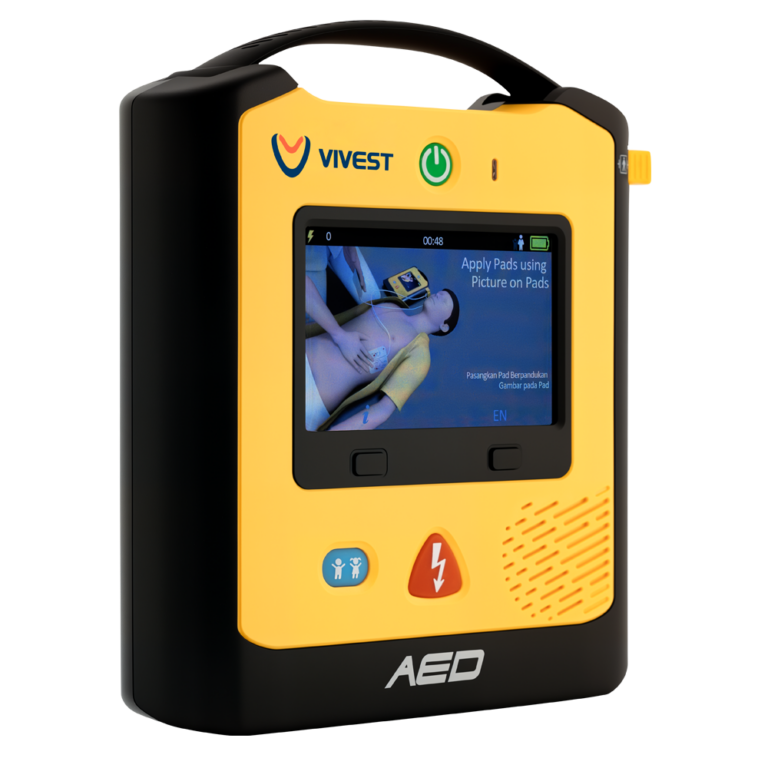

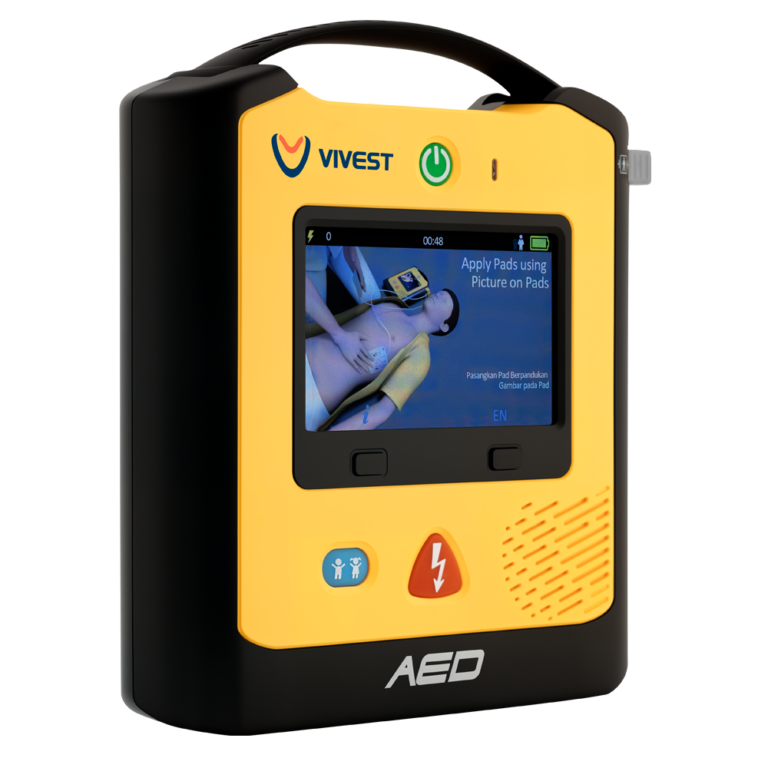

Intuitive Guidance with LCD Color Display
A3 AED is a semi-automatic AED designed for everyday public environments where immediate response is needed. It features a 5-inch color screen that displays step-by-step instructions along with voice prompts, and supports bilingual switching. This combination helps create optimal conditions for a fast, effective, and safe response to Out-of-Hospital Cardiac Arrest.
The device includes a dedicated child mode, daily self-tests, and a durable IP55-rated housing. Its compact design allows easy installation in offices, schools, transport areas, and other high-traffic locations, supporting fast action when every second counts.
Clear Guidance

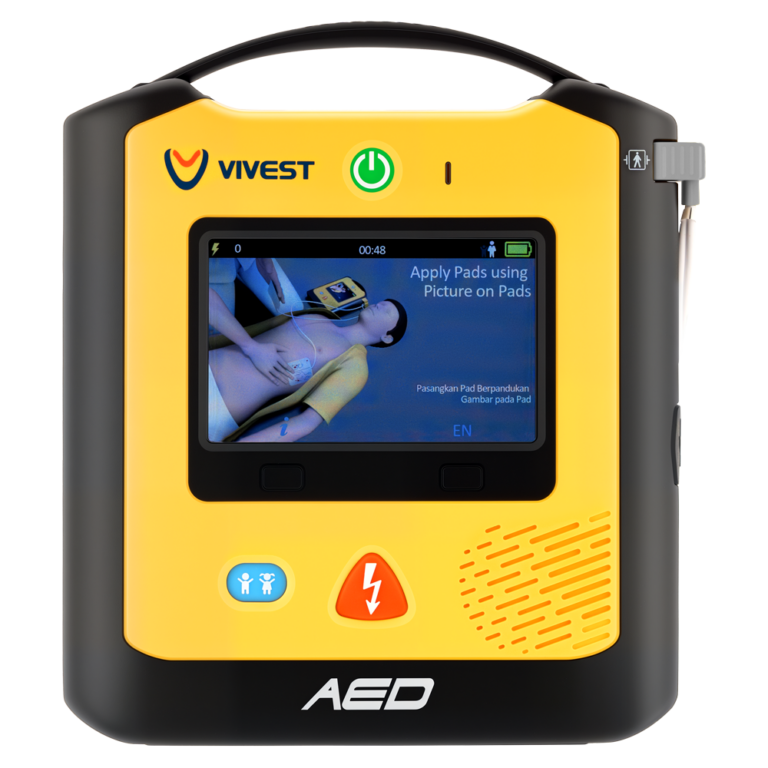

The 5 inch LCD color-screen will visually instruct the user on what to do and how to do it along with voice prompts.
Child Mode
If in the unfortunate circumstance that a child needs to be rescued simply press the child button to put the AED into child mode.
Dual Language Option
The dual language option improves accessibility, supports diverse users, and enhances emergency efficiency across communities.
Compact and Durable
- The device is only 1.5kg, light and easy to carry with handle.
- All six sides of the device can withstand a 1.5-metre drop impact.
- IP55-rated dust and water resistance.
User-Friendly Operation

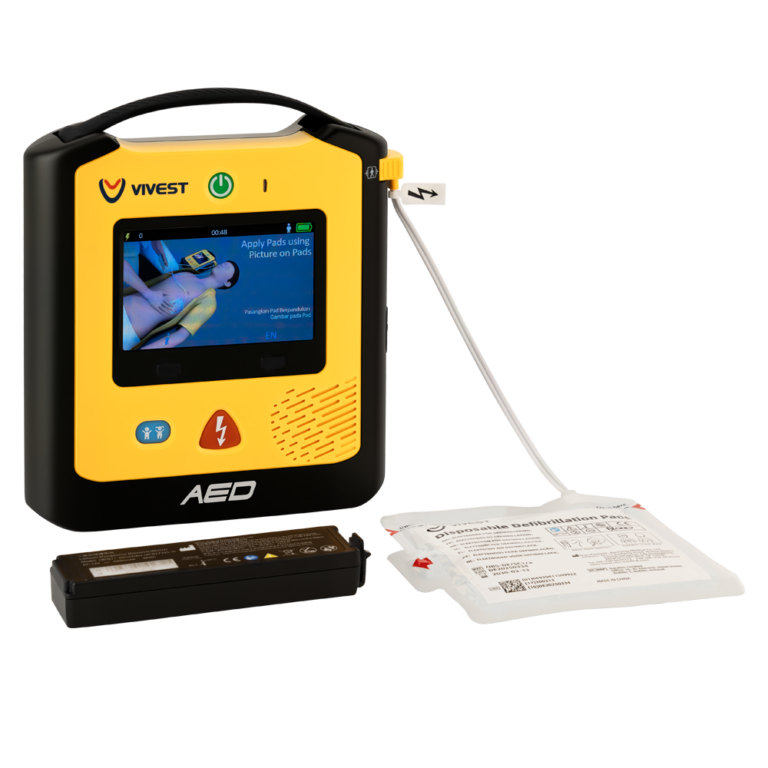

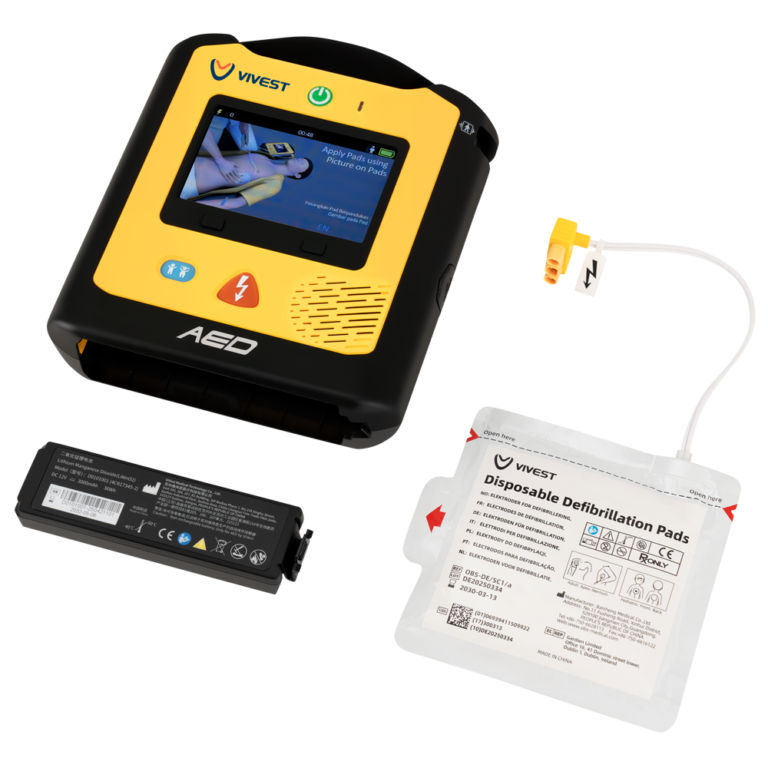

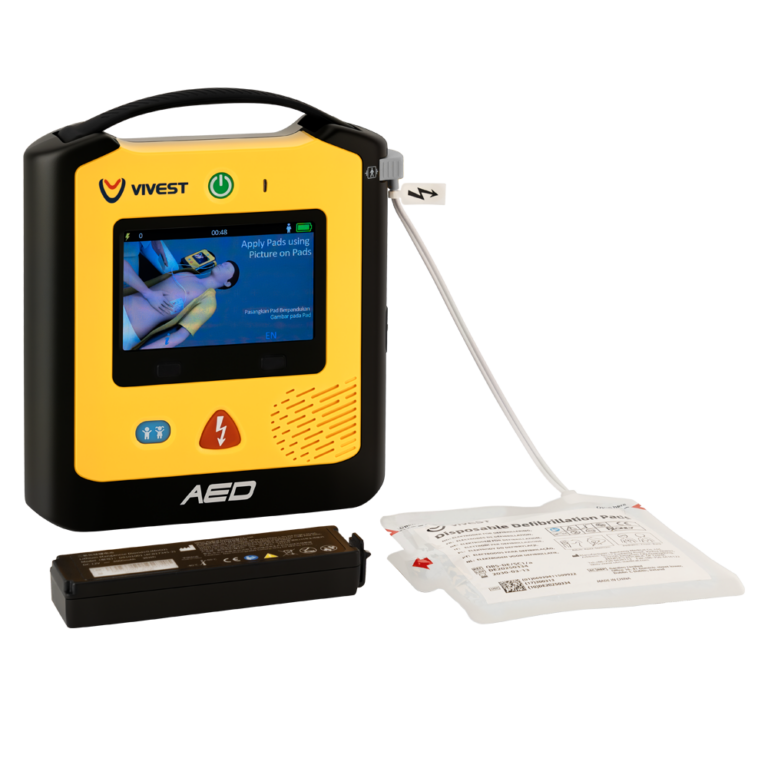

- Electrode pads are pre-connected.

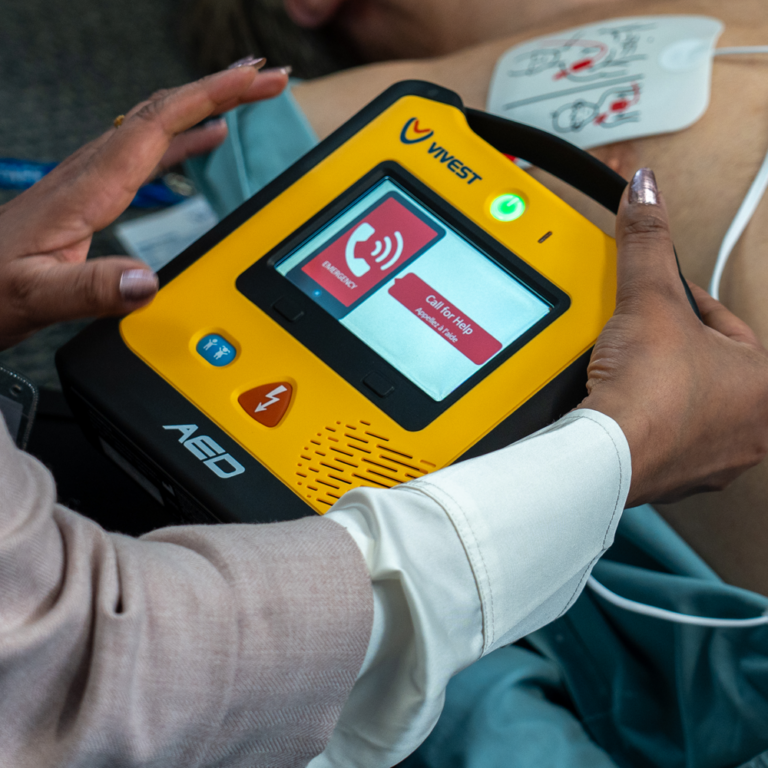

- Animation via LCD screen and voice guidance throughout the rescue process.
- Child button to switch the AED into Child Mode.
Smart Management
- Daily, weekly, monthly and quarterly self-tests ensure device is ready for use at all times.

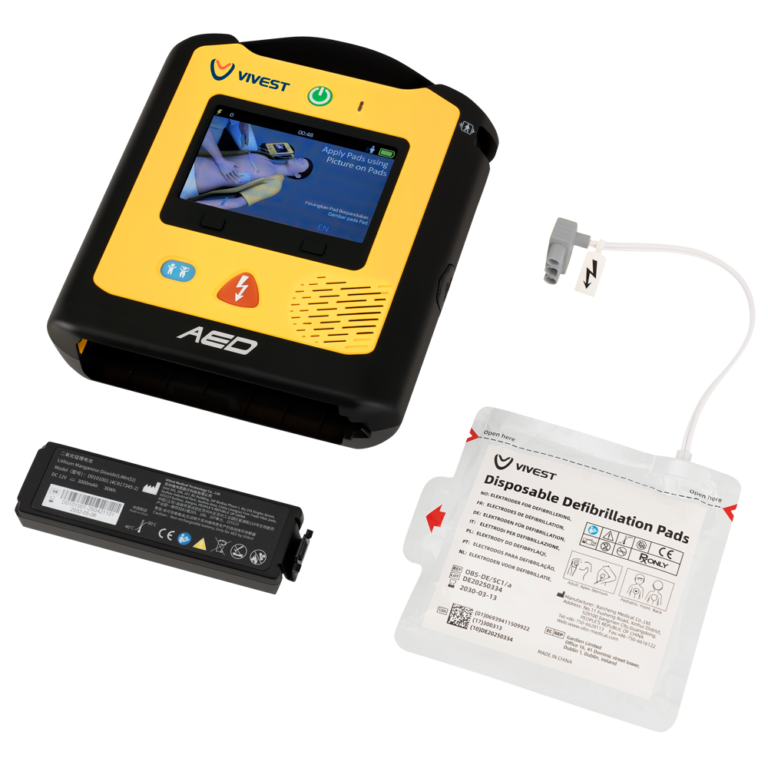

- Universal pads suitable for both adult and child patients.
- Fleet Management enabled, messages on status and geo-location including movement tracking.
Advanced and Safe
- Utilize Biphasic Truncated Exponential (BTE) waveform with automatic impedance compensation.
- Deliver effective 150J defibrillation while minimizing myocardial damage.
- Fast and stable ECG analysis, with shock readiness achieved in less than 7 seconds after “Shock Advised” prompt.
Specification Comparison
A1 AED
|
Specification
|
A1 AED
|
A3 AED
|
|---|---|---|
|
Dimensions (H x W x D)
|
5.9 × 23.2 × 20.9 cm
|
5.9 × 23.2 × 20.9 cm
|
|
Child Mode
|
Yes
|
Yes
|
|
LCD Screen
|
No
|
Yes
|
|
Language Switch
|
No
|
Yes
|
|
Dust & Water Resistance
|
IP55
|
IP55
|
|
Daily Self Test
|
Yes
|
Yes
|
|
Battery Standby Life
|
5 Years
|
5 Years
|
|
Drop Impact Resistance
|
1.5 Metres
|
1.5 Metres
|
A3 AED

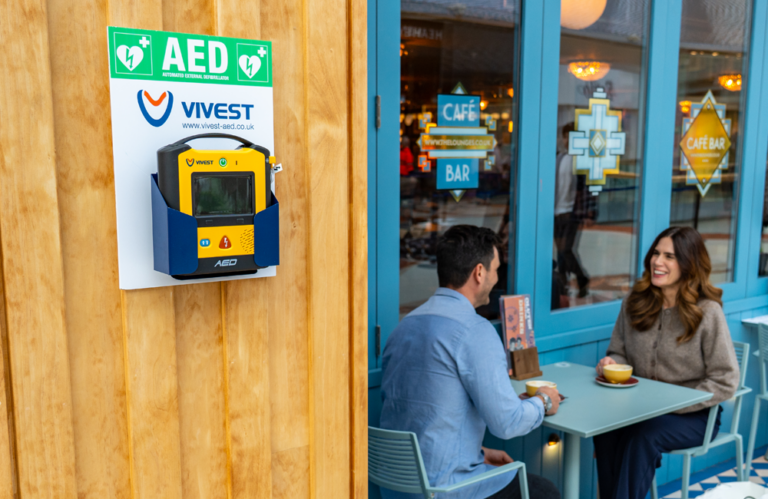

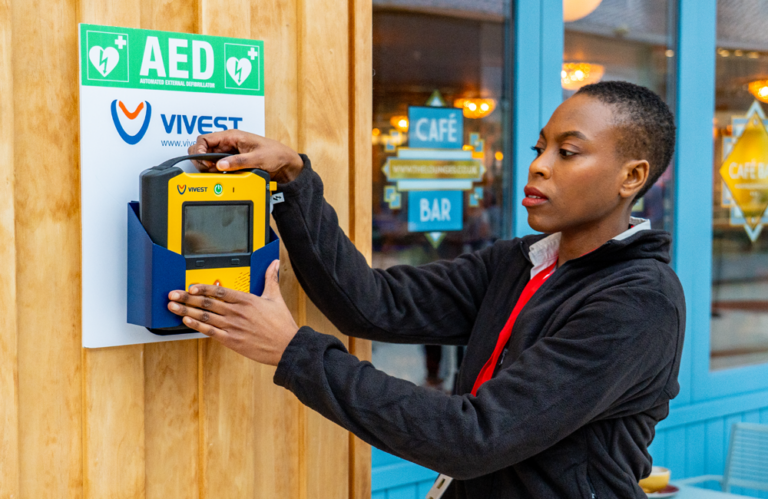

Application Gallery
When every second counts -AEDs save lives
